How to Measure Campervan Cushions for Reupholstery
LuxCampervans Journal — Practical Guide Series
Getting a reupholstered cushion to fit properly starts long before any fabric is chosen — it starts with accurate measurements. Rush this step, or measure the wrong points, and even beautiful fabric and premium foam will not save a cushion that simply does not sit right in your van. Here is exactly how to measure your campervan cushions correctly, step by step.
Why Measuring Accurately Matters More Than Fabric Choice
It is easy to spend most of your attention choosing a fabric and very little on the measurements that will actually determine whether the finished cushion fits. Foam, unlike fabric, cannot be eased, stretched, or gently persuaded to compensate for an inaccurate measurement, which means small errors at this stage become permanent problems once the cushion is made.
Why can't small measuring errors just be corrected later?
Because foam is cut to a fixed pattern before upholstery even begins. A cushion that is a centimetre too narrow or too shallow cannot be adjusted afterwards without unpicking and rebuilding it — which is exactly why getting the measurements right the first time saves both time and cost.
Tools You'll Need Before You Start
What to gather before measuring:
- A fabric tape measure, ideally at least 3 metres long.
- A notepad or phone to record each measurement immediately.
- Your existing cushion removed, or the frame fully accessible.
- Good lighting, so fold lines and curved edges are clearly visible.
- A camera, to photograph the frame and any awkward corners or bolsters.

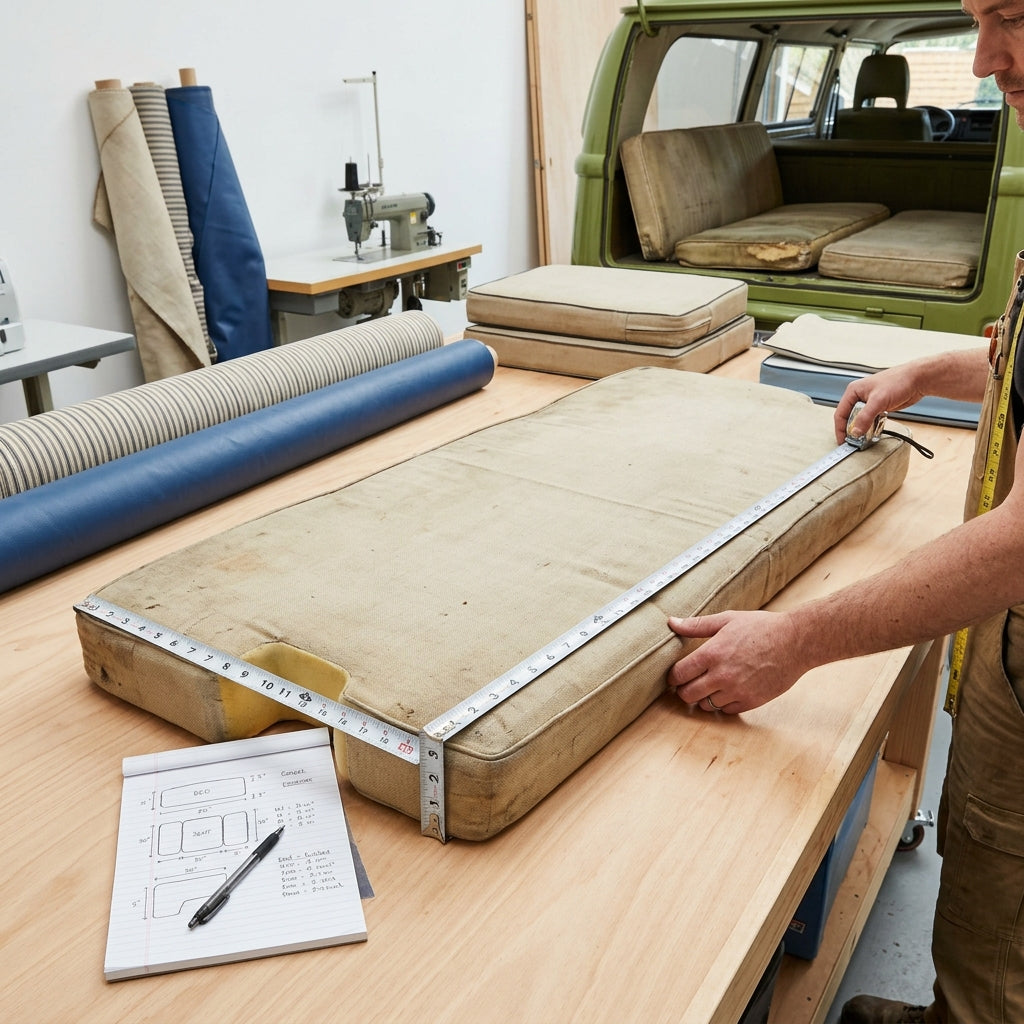

Step by Step: How to Measure Your Campervan Cushion
Follow these steps in order:
- Measure the width at the front, middle, and back of the cushion, since many frames taper slightly and a single measurement can miss this.
- Measure the depth from the front edge to the back of the seat, again at more than one point if the frame is not perfectly rectangular.
- Measure the thickness of the existing foam, noting whether it appears compressed compared to its original depth.
- Record any fold lines precisely, including the exact point at which a rock and roll bed cushion bends between seat and bed positions.
- Note any curved or angled edges, bolsters, or corner sections, and measure each one individually rather than assuming symmetry.
- Photograph the whole frame from multiple angles, to give extra context alongside your written measurements.
A mistake worth avoiding: measuring only the fabric cover, rather than the underlying frame. Fabric can shrink, stretch, or have been cut generously in the first place, so measuring the frame itself gives a far more reliable result.
Sending Your Measurements for an Accurate Reupholstery Quote
Once you have your measurements and photographs, share both together rather than numbers alone. Photographs give context that numbers cannot — confirming which edge is which, how a bolster is shaped, or where a fold line actually sits — and allow us to flag anything that looks unusual before cutting begins.
Common Measuring Mistakes and How to Avoid Them
| Common mistake | Why it causes a problem | How to avoid it |
|---|---|---|
| Measuring only one point along the width | Frames often taper slightly, so a single measurement misses the full shape. | Measure at the front, middle, and back, and note any difference. |
| Measuring the fabric cover instead of the frame | Fabric can be stretched or cut generously, giving an inaccurate result. | Remove the cover where possible and measure the frame directly. |
| Ignoring the fold line position | An incorrectly placed fold line can create a hard seam under the body. | Record the exact fold point and photograph it clearly. |
| Assuming corners or bolsters are symmetrical | Small asymmetries are common and easy to miss without checking each one. | Measure every curved or angled section individually. |
Why Accurate Measuring Matters at LuxCampervans
- We check your measurements against photographs — flagging anything unclear before cutting begins.
- Every section measured individually — no assumed symmetry across corners or bolsters.
- Fold lines recorded precisely — avoiding a hard seam once the bed is folded flat.
- HR50 high density foam as standard — cut exactly to your confirmed measurements.
- Edge to edge fit guaranteed — when measurements are accurate from the start.
- Handcrafted in the UK — hand finished to the same standard, every order.
Frequently Asked Questions
What tools do I need to measure my campervan cushions?
A fabric tape measure, a notepad or phone to record measurements, good lighting, and a camera to photograph the frame are all you need to get started.
Should I measure the fabric cover or the underlying frame?
The frame, wherever possible. Fabric can be stretched or cut generously, which gives a less reliable measurement than measuring the frame directly.
Do I need to measure the same cushion in more than one place?
Yes, many frames taper slightly, so measuring width and depth at the front, middle, and back gives a much more accurate picture than a single measurement.
How do I measure the fold line on a rock and roll bed cushion?
Note the exact point at which the cushion bends between seat and bed positions, and photograph it clearly, since this affects how the foam is cut and supported.
Do I need to send photographs along with my measurements?
Yes, photographs give valuable context that numbers alone cannot, helping to confirm shapes, bolsters, and awkward corners before cutting begins.
What if I'm not confident measuring my cushion myself?
Send us photographs and any measurements you do have, and we can help guide you through anything unclear before confirming your order.
Can van conversion companies send frame specifications instead of manual measurements?
Yes, we work directly with van conversion companies using supplied frame drawings or specifications for professional builds.
How long does reupholstery take once measurements are confirmed?
Our standard lead time is 10 to 14 working days from confirmed measurements and fabric selection.
How do I submit my measurements for a quote?
Request a bespoke quotation and include your measurements alongside photographs of the frame for the most accurate result.
Ten Minutes of Careful Measuring Saves Weeks of Disappointment
Reupholstery is only as good as the measurements it starts from. Taking the time to measure every section carefully, photograph the frame clearly, and record fold lines precisely gives your new cushion the best possible chance of a genuine edge to edge fit, first time.
